Description

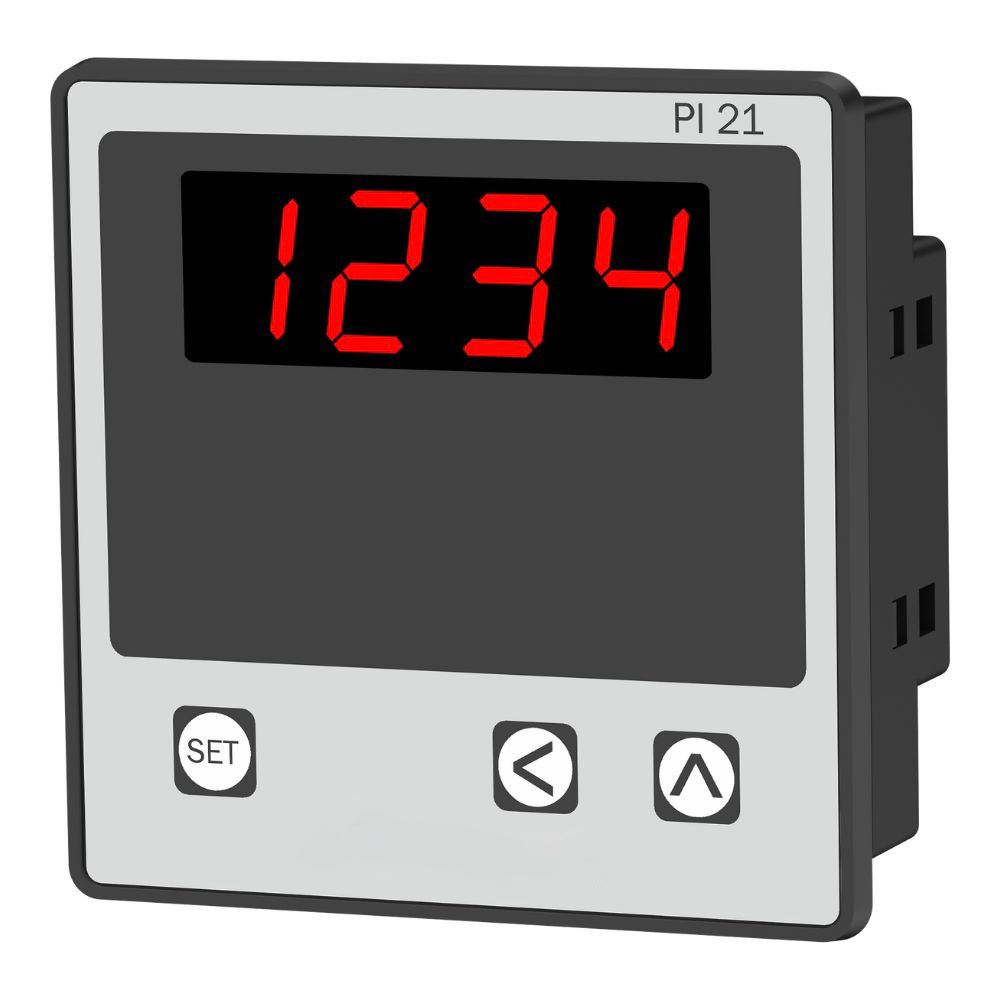

DATA SHEET :- PI -21
| INPUT SPECIFICATION | |
| Input Types | Voltage: 0 to 10V DC |
| Current: 0 to 20mA DC, | |
| 4 to 20mA DC | |
| I/P Filter Time | 0.1 Sec to 10.0 Sec |
| Resolution | Decimal Point Selectable: 0.1, 0.01, 0.001, 0001 |
| Range | -999 to 9999 (For all I/P) |
| Indication Accuracy | ±1% FSD ± 1 digit |
| (FSD – Full Scale Deflection) | |
| DISPLAY AND KEY | |
| Display | 4-Digit, 7-Segment, 0.56” RED LED |
| Keys | SET, SHIFT, INC |
| DIMENSION | |
| Size (mm) | 72 (H) x 72 (W) x 36 (D) |
| Panel Cutout (mm) | 68 (H) x 68(W) |
| POWER SUPPLY | |
| Supply Voltage | 100 to 270V AC, 50-60Hz |
| Power Consuption (VA Rating) | 2VA @ 230V AC MAX |
| ENVIRONMENT CONDITION | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity | Upto 95% RH (non-condensing) |
| Protection Level (As per request) |
IP-65 (Front side) As per IS/IEC 60529 : 2001 |
