Description
We supply a full range of Globe Valves designed to deliver accurate flow control and long service life across various process and utility applications.

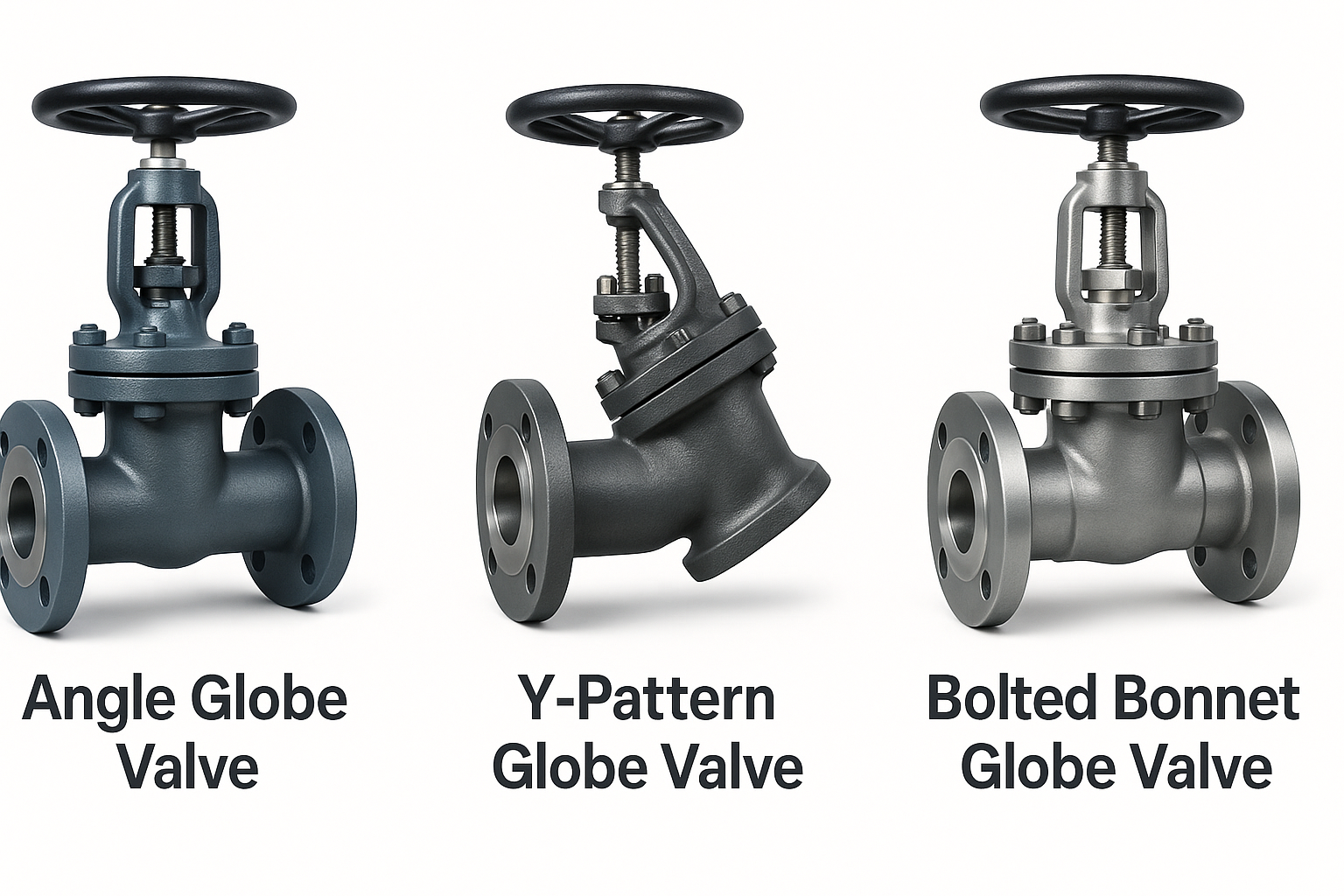

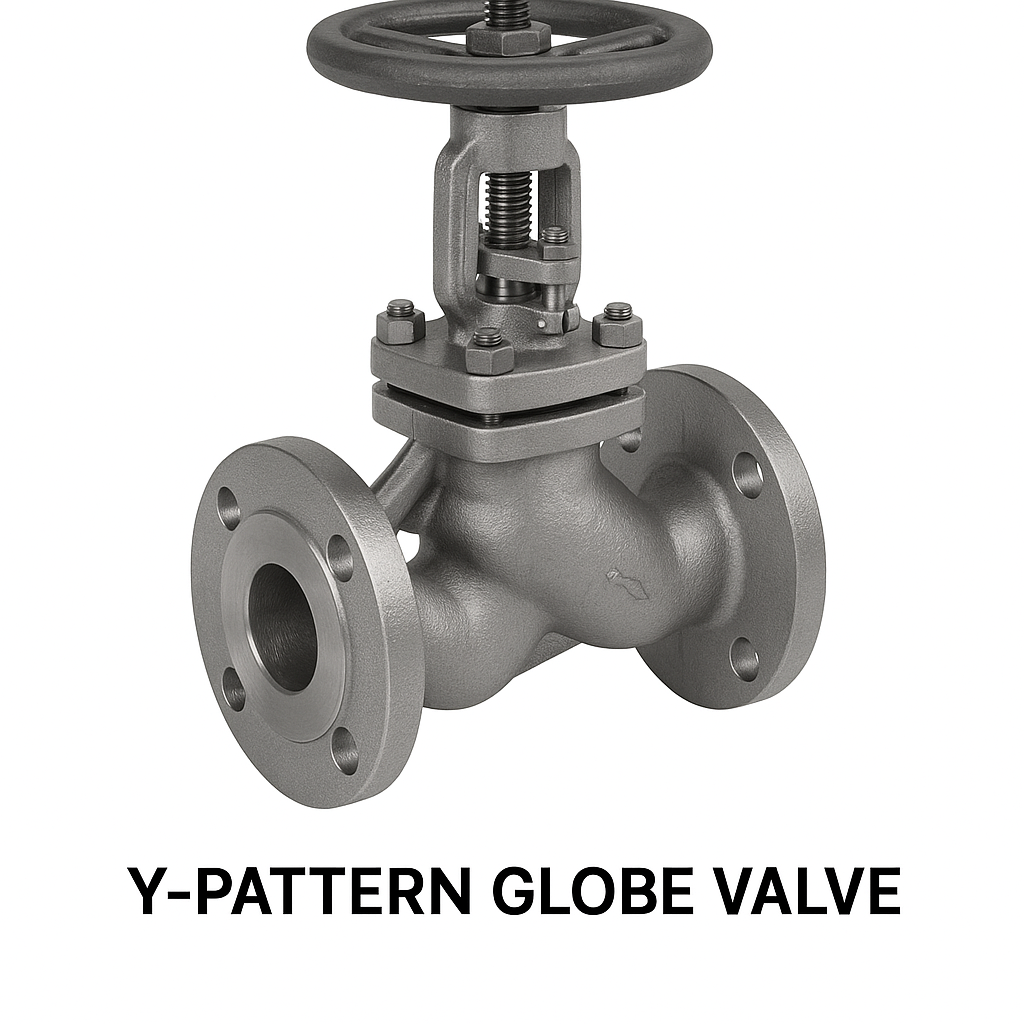

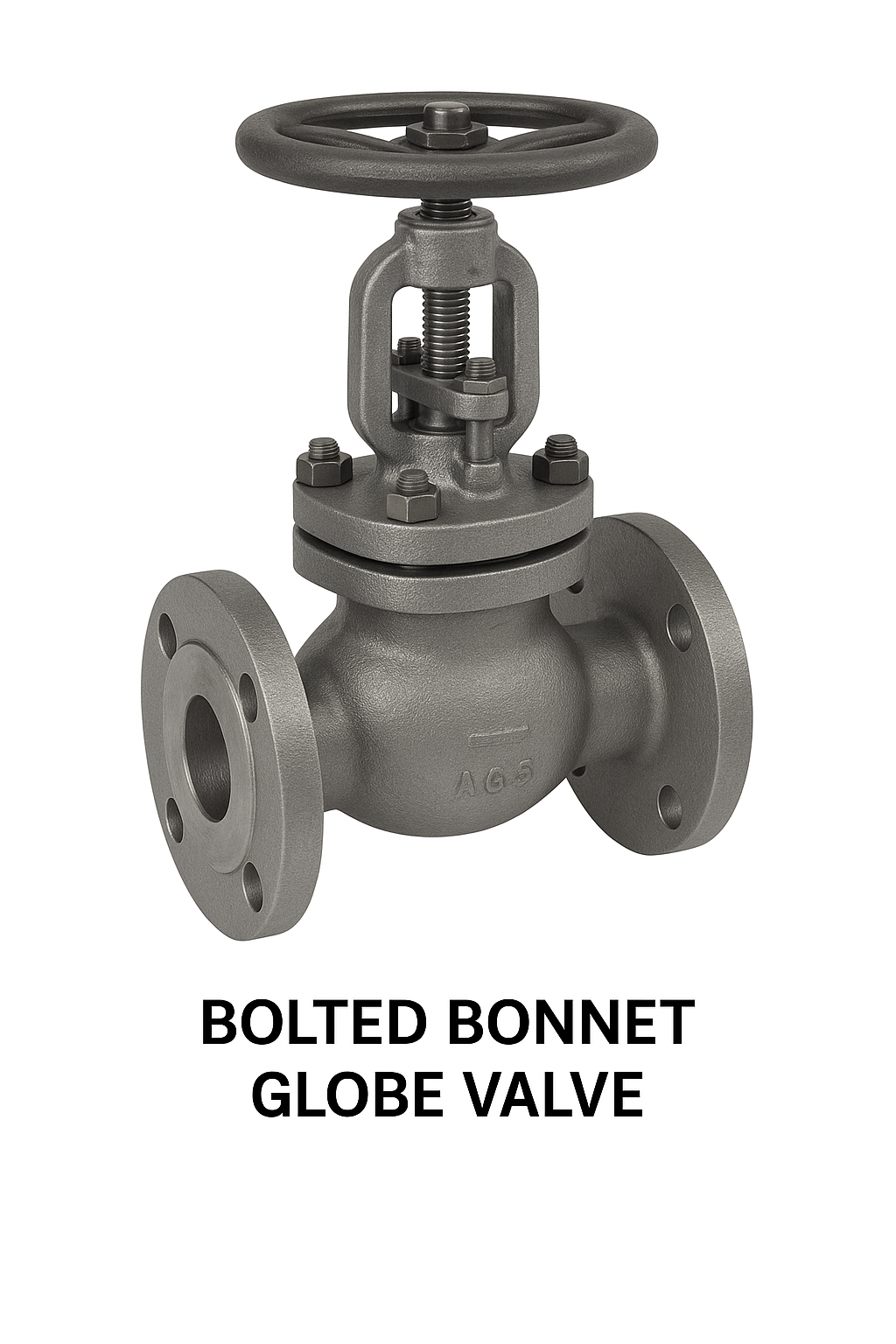

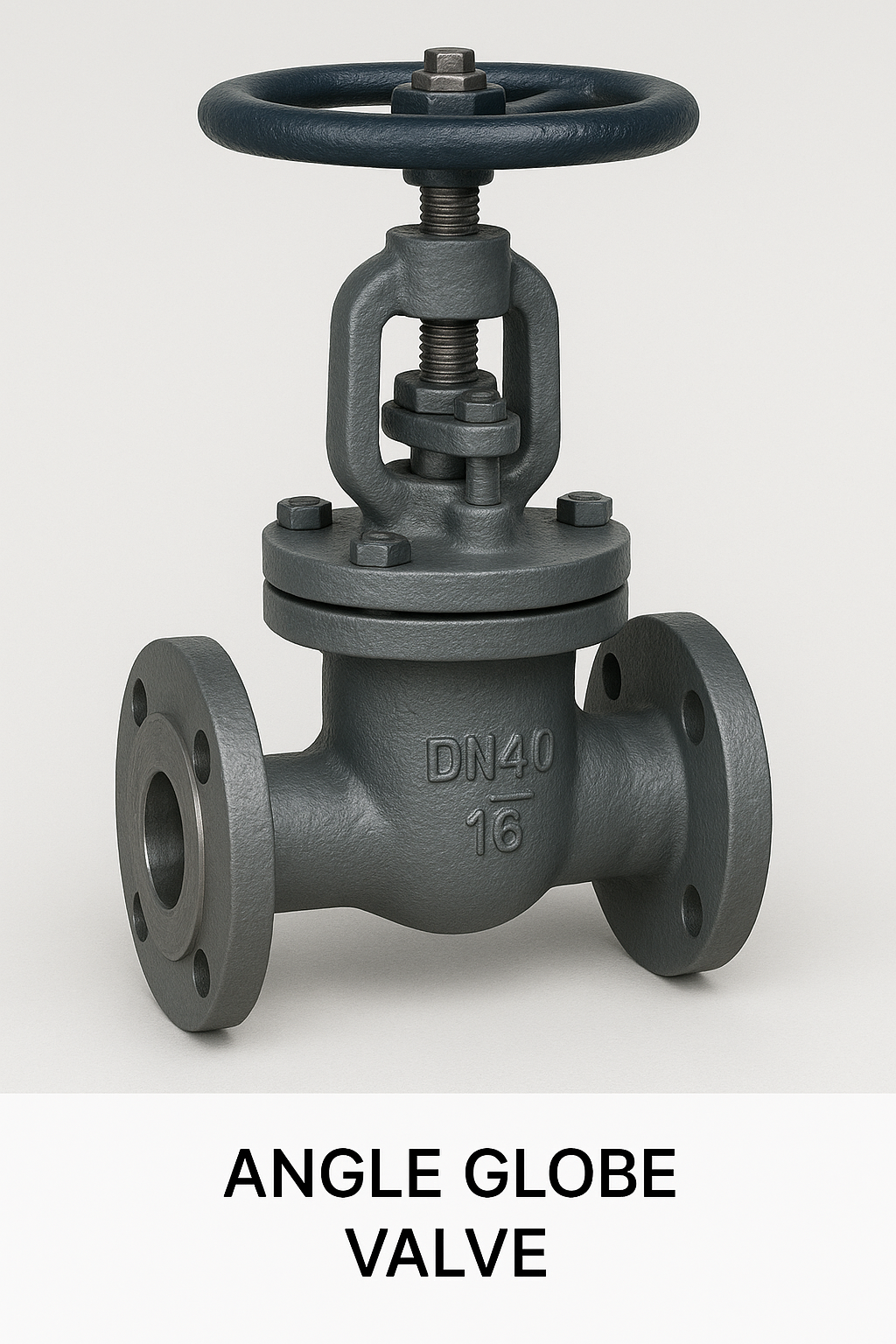

Our portfolio includes Angle Globe Valves, Y-Pattern Globe Valves, and Bolted Bonnet Globe Valves, each manufactured to meet demanding industrial conditions. These valves provide excellent throttling characteristics, low seat wear, and reliable shutoff for steam, gas, and liquid services.
Constructed from premium materials such as carbon steel, stainless steel, and alloy steels, our valves ensure high resistance to temperature, pressure, and corrosion — suitable for use in power plants, oil & gas, chemical, and water treatment industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Size Range | ½” to 24” (custom sizes available) |
| Pressure Rating | Class 150 – Class 2500 / PN10 – PN420 |
| Body Material | Carbon Steel (WCB), Stainless Steel (CF8 / CF8M), Alloy Steel, Bronze |
| Trim Material | Stainless Steel, Monel, Stellite, PTFE |
| Design Types | Angle Type, Y-Pattern, Straight Pattern |
| Bonnet Type | Bolted Bonnet, Welded Bonnet, Pressure-Seal Bonnet |
| End Connections | Flanged, Socket Weld, Butt Weld, Threaded |
| Flow Characteristics | Linear |
| Seat Type | Metal-to-Metal / Soft Seated (PTFE / NBR) |
| Operation | Manual Handwheel, Electric, or Pneumatic Actuator |
| Temperature Range | -29°C to +600°C (depending on material) |
| Design Standards | BS 1873 / ASME B16.34 / API 623 |
| Testing Standards | API 598 / ISO 5208 |
Key Features
-
Precise throttling and flow control capability
-
Excellent seat tightness with low leakage rates
-
Rugged construction for high-pressure and high-temperature service
-
Available in angle, Y-pattern, and bolted bonnet configurations
-
Easy maintenance and replaceable seat design
-
Suitable for both manual and automated operation
-
Long service life and low operating torque
Applications
-
Steam and condensate control systems
-
Chemical and petrochemical plants
-
Oil & gas refineries and pipelines
-
Power generation (boiler feed, turbine control)
-
HVAC and utility systems
-
Water treatment and desalination plants
Certifications & Global Compliance
-
ISO 9001 – Quality Management System
-
API 623 / ASME B16.34 – Design and construction standards
-
API 598 / EN 12266 – Valve testing and inspection
-
CE / PED (Europe) – Pressure Equipment Directive compliance
-
NACE MR0175 – Material compliance for sour service
-
RoHS / REACH – Environmental and chemical safety
📩 For flow coefficient data, material selection charts, or technical inquiries, contact: info@smpsuppliers.com
